TP-YS
Availability: | |
---|---|
Quantity: | |

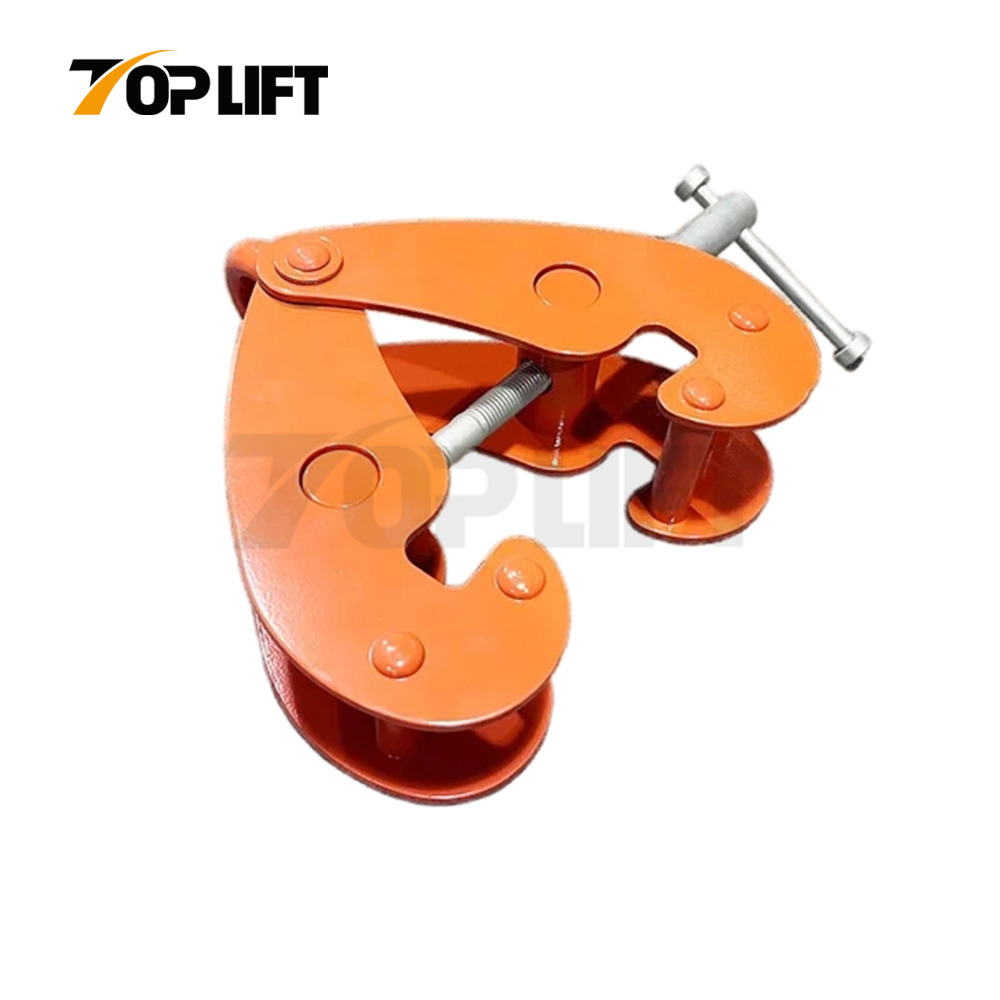

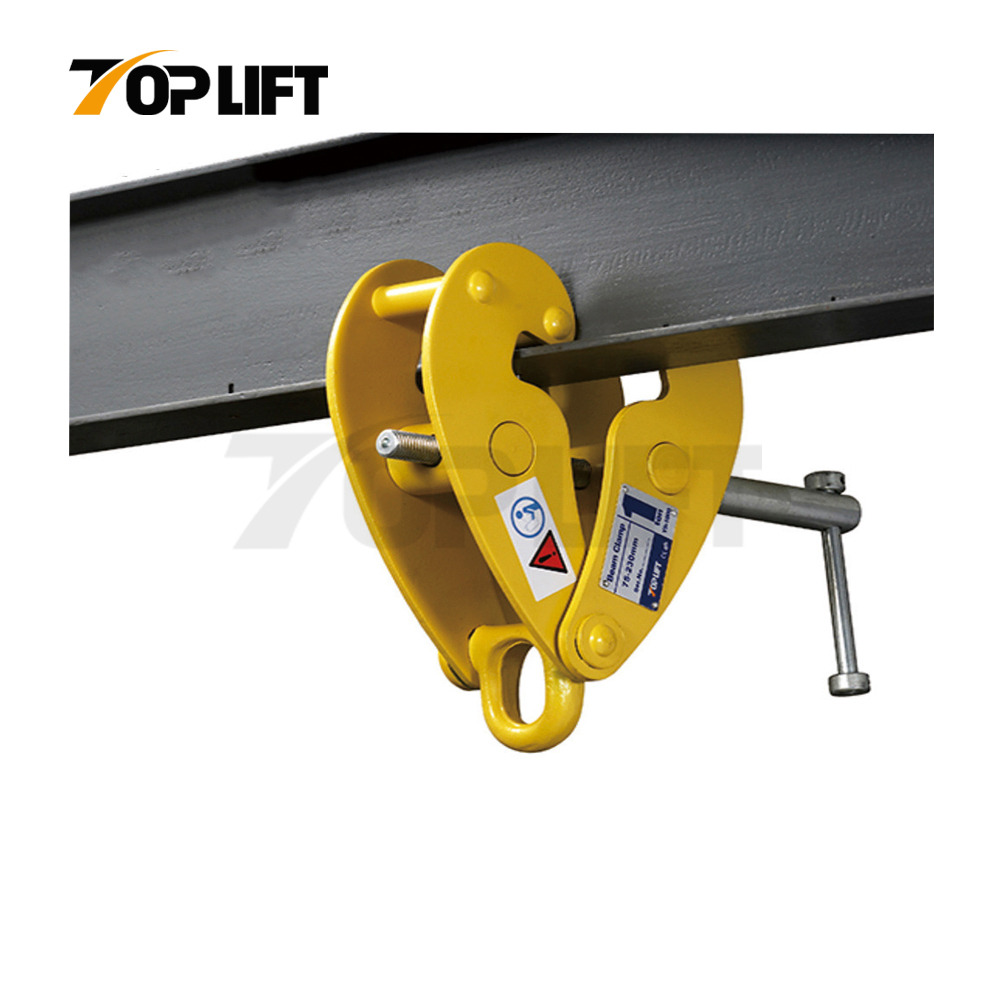

TP-YC clamp is designed for attachment to the lower flanges of structural steel beams to provide a semi-permanent lifting point and can fit flanges of most structural beams.
Features:
1. There is quick and versatile rigging ponit for hoisting equipment.
2. It has shackle suspension point.
3. Highly flexible-for lifting,pulling or as an anchor point
4. Multi-directional adjusting screw spindle for easy attachment and safe and secure grip
5. Wide beam flange adjustment range
Our advantages
1. Provide OEM service.
2. The same quality product with the best price.
3. We are specialized in the field of lifting equipment and rigging product supply for around 10 years, with rich experience in Production.

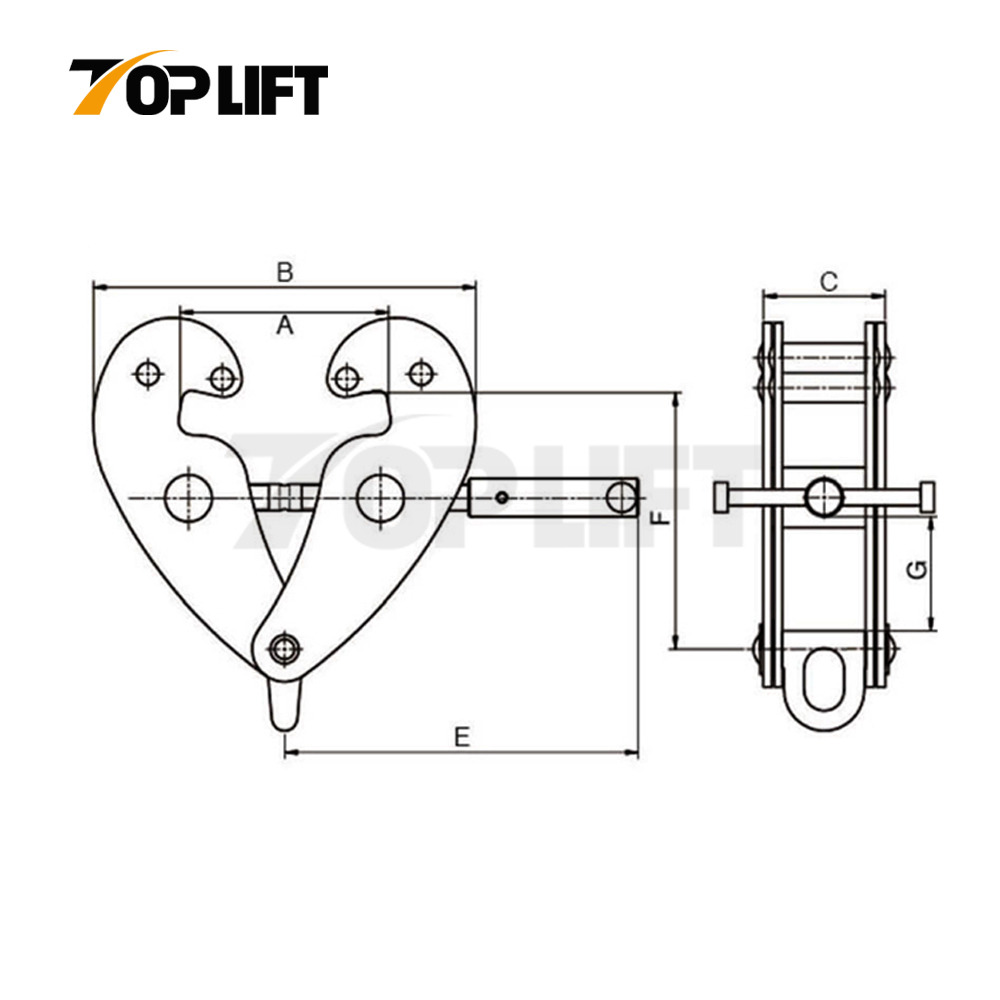

Specification
Model | Capacity load (Ton) | Test Load (KN) | I-Beam Width Range (MM) | A (Max) | B | C | E | F | G | Weight(Kg) | ||
Min | Max | Min | Max | |||||||||
YS-1.0T | 1 | 12.3 | 75-230 | 260 | 180 | 360 | 64 | 215 | 102 | 155 | 25 | 3.8 |
YS-2.0T | 2 | 24.5 | 75-230 | 290 | 185 | 400 | 85 | 215 | 90 | 165 | 25 | 5 |
YS-3.0T | 3 | 36.8 | 80-320 | 354 | 235 | 490 | 103 | 260 | 140 | 225 | 45 | 9 |
YS-5.0T | 5 | 61.3 | 90-310 | 354 | 235 | 490 | 110 | 260 | 140 | 225 | 45 | 11 |
YS-10.0T | 10 | 122.5 | 90-320 | 365 | 320 | 505 | 120 | 280 | 170 | 235 | 50 | 18.6 |
Details

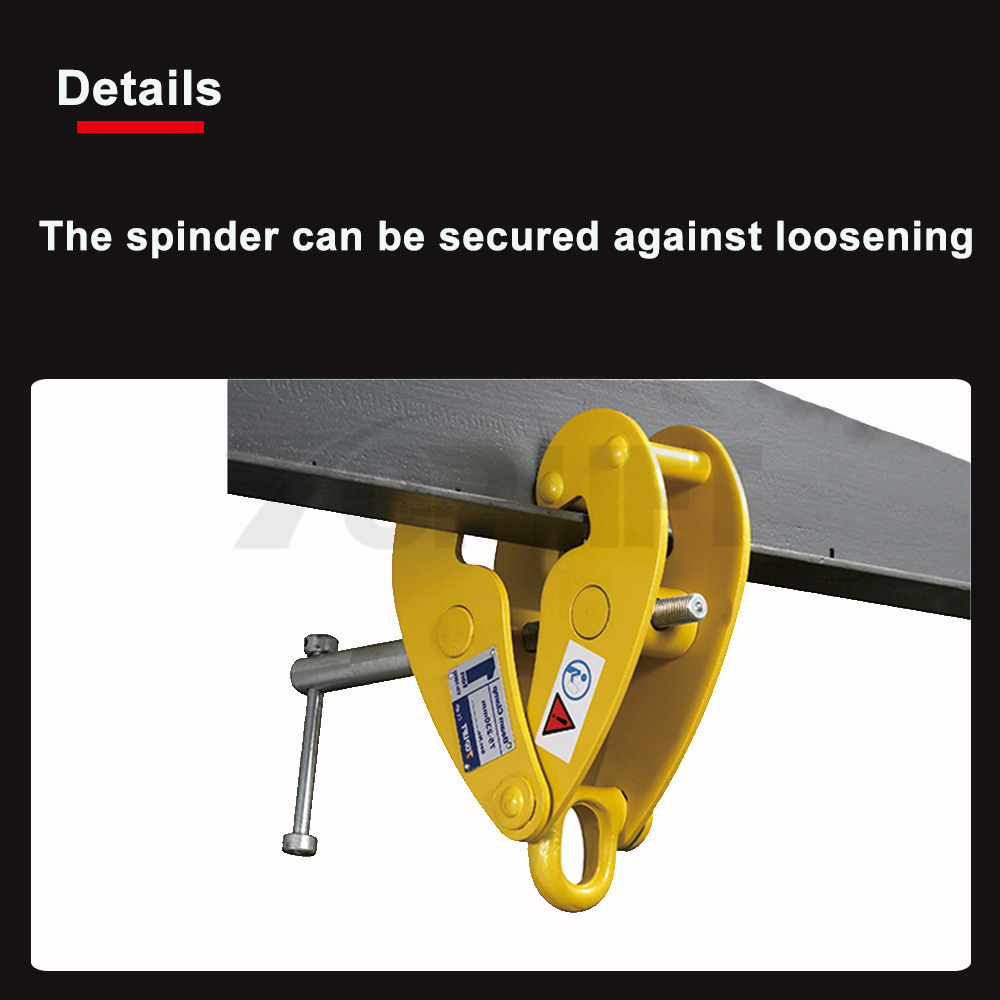

The spinder can be secured against loosening.

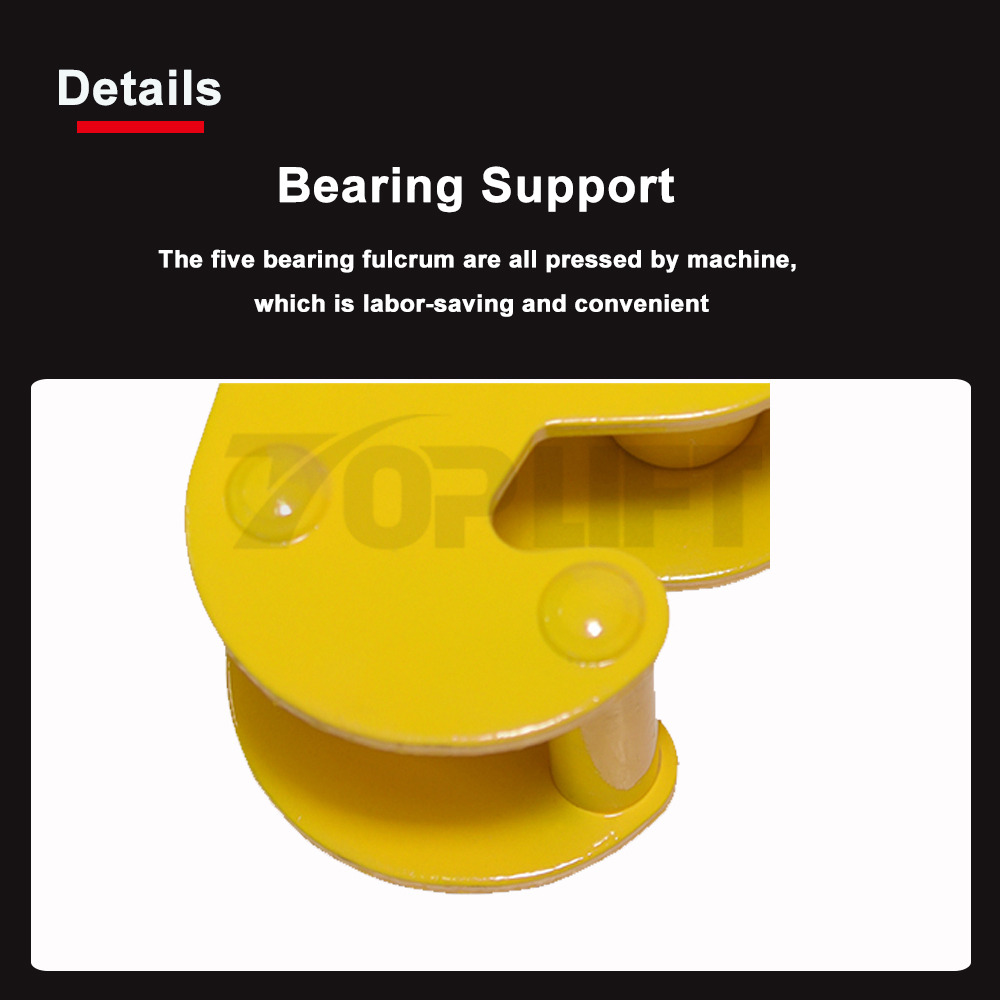

The five bearing fulcrums are all pressed by machine, which is labor-saving and convenient.
The clamp is forged integrally, which is strong and durable.
Beam clamp is used for I-beam.
The beam clamp can be used in warehouse storage, construction operations, port wharf, steel plate transportation and so on.
FAQ:
1. Do you provide OEM service?
Yes, of course. We have professional designers to help you design the brand.
2. How to get samples to check your quality?
After price confirmation, you can require for samples to check our quality. Free for the samples, but you need to pay for the freight.
3. How to guarantee your quality?
We have different kinds of products that can meet different quality standard.
Our QC department will test products before shipping. We have 100% quality guarantee to customers. We will be responsible for any quality problem.
4. How long is the delivery time?
The delivery time is depend on the products and the quantity. But generally speaking, the delivery time for one container is about one month.
