TP-SBC
TOPLIFT OR OEM
Availability: | |
---|---|
Quantity: | |
These girder clamps are truly versatile in application and may be used for lifting, pulling or as an anchor point. Designed specially to provide maximum jaw grip adjustment. The clamps are speedily applied and do not require additional tools or width adjusting components, such as spacing washers. The lift and right-hand threaded adjusting bar ensures a secure grip on the beam flange.
Features:
1. The contact surface is large while the stress face is small and uniformly.
2. The beam clamp is forged alloy steel, durable and stable.
3. Suitable for pulling and lifting at angles across the beam.
4. Highly flexible-for lifting, pulling or as a semi-permanent anchor point.
Our advantages
1. Provide OEM service.
2. The same quality product with the best price.
3. We are specialized in the field of lifting equipment and rigging product supply for around 10 years, with rich experience in Production.

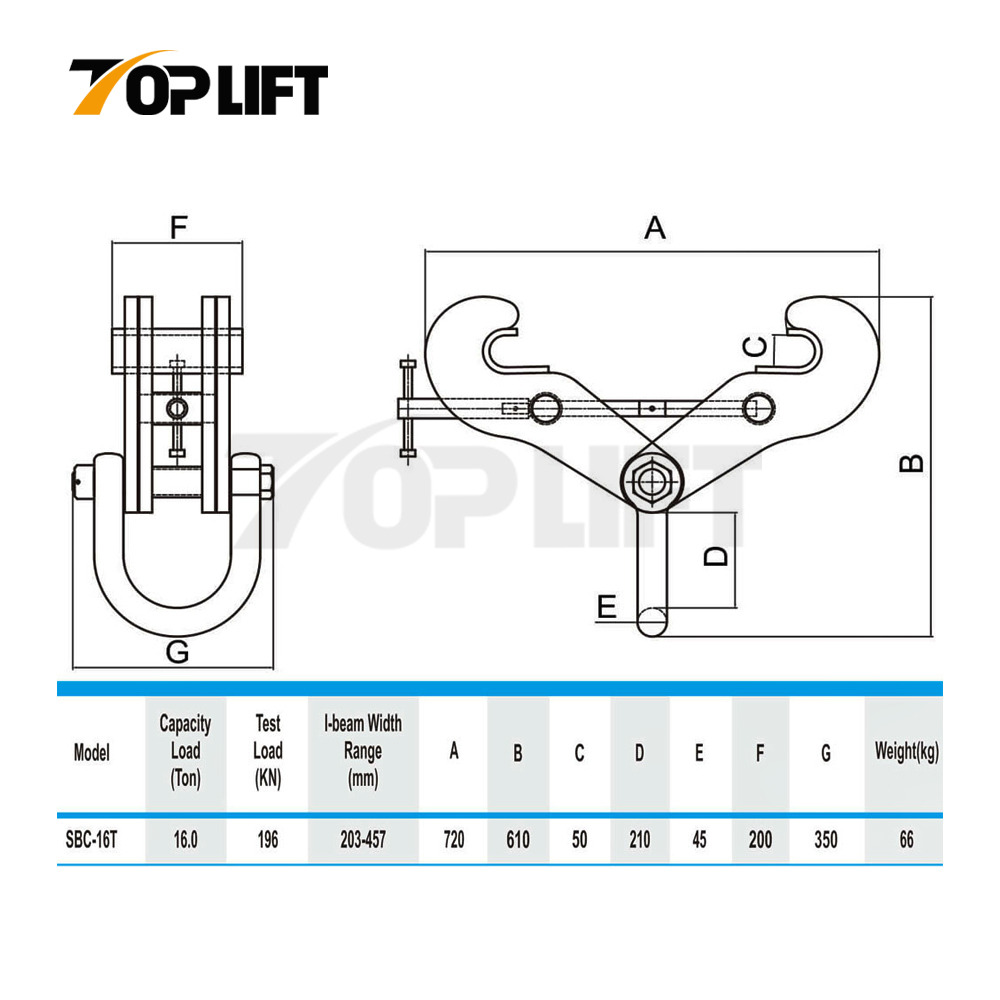

Specification
Model | Capacity Load (t) | Test Load(kn) | I-beam Width Range(mm) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | Weight(kg) |
SBC-16T | 16 | 196 | 203-457 | 720 | 610 | 50 | 210 | 45 | 200 | 350 | 66 |
Model | Capacity Load (t) | Test Load(kn) | I-beam Width Range(mm) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | Weight(kg) |
SBC-20T | 20 | 245 | 203-457 | 720 | 610 | 50 | 210 | 45 | 350 | 400 | 81 |
Details
FAQ:
1. Do you provide OEM service?
Yes, of course. We have professional designers to help you design the brand.
2. How to get samples to check your quality?
After price confirmation, you can require for samples to check our quality. Free for the samples, but you need to pay for the freight.
3. What's your quality guarantee?
We have different kinds of products that can meet different quality standard.
Our QC department will test products before shipping. We have 100% quality guarantee to customers. We will be responsible for any quality problem.
4. what's the delivery time?
The delivery time is depend on the products and the quantity. But generally speaking, the delivery time for one container is about one month.
These girder clamps are truly versatile in application and may be used for lifting, pulling or as an anchor point. Designed specially to provide maximum jaw grip adjustment. The clamps are speedily applied and do not require additional tools or width adjusting components, such as spacing washers. The lift and right-hand threaded adjusting bar ensures a secure grip on the beam flange.
Features:
1. The contact surface is large while the stress face is small and uniformly.
2. The beam clamp is forged alloy steel, durable and stable.
3. Suitable for pulling and lifting at angles across the beam.
4. Highly flexible-for lifting, pulling or as a semi-permanent anchor point.
Our advantages
1. Provide OEM service.
2. The same quality product with the best price.
3. We are specialized in the field of lifting equipment and rigging product supply for around 10 years, with rich experience in Production.
Specification
Model | Capacity Load (t) | Test Load(kn) | I-beam Width Range(mm) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | Weight(kg) |
SBC-16T | 16 | 196 | 203-457 | 720 | 610 | 50 | 210 | 45 | 200 | 350 | 66 |
Model | Capacity Load (t) | Test Load(kn) | I-beam Width Range(mm) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | Weight(kg) |
SBC-20T | 20 | 245 | 203-457 | 720 | 610 | 50 | 210 | 45 | 350 | 400 | 81 |
Details
FAQ:
1. Do you provide OEM service?
Yes, of course. We have professional designers to help you design the brand.
2. How to get samples to check your quality?
After price confirmation, you can require for samples to check our quality. Free for the samples, but you need to pay for the freight.
3. What's your quality guarantee?
We have different kinds of products that can meet different quality standard.
Our QC department will test products before shipping. We have 100% quality guarantee to customers. We will be responsible for any quality problem.
4. what's the delivery time?
The delivery time is depend on the products and the quantity. But generally speaking, the delivery time for one container is about one month.
