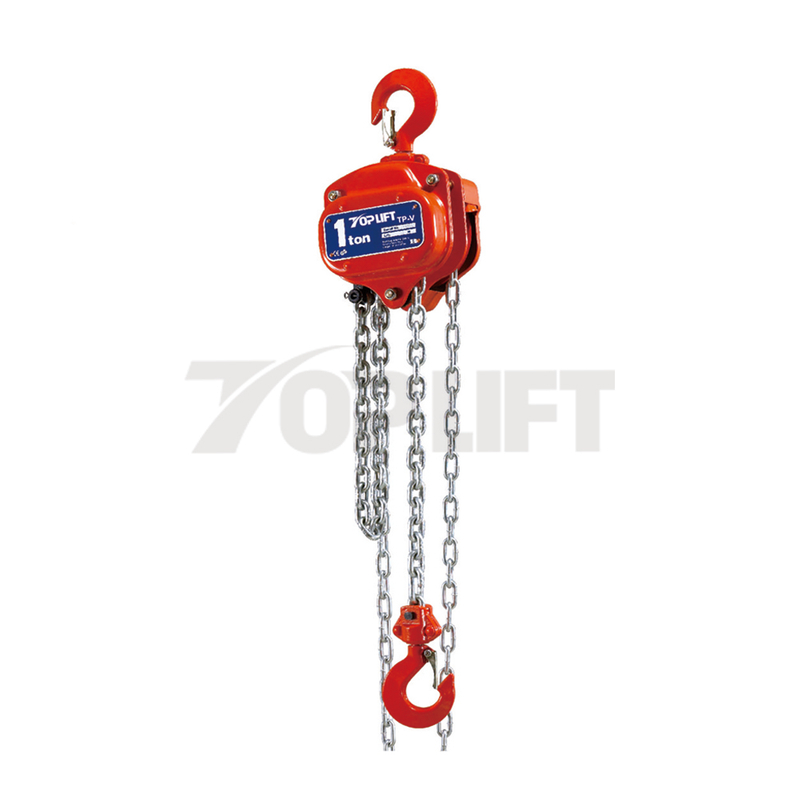

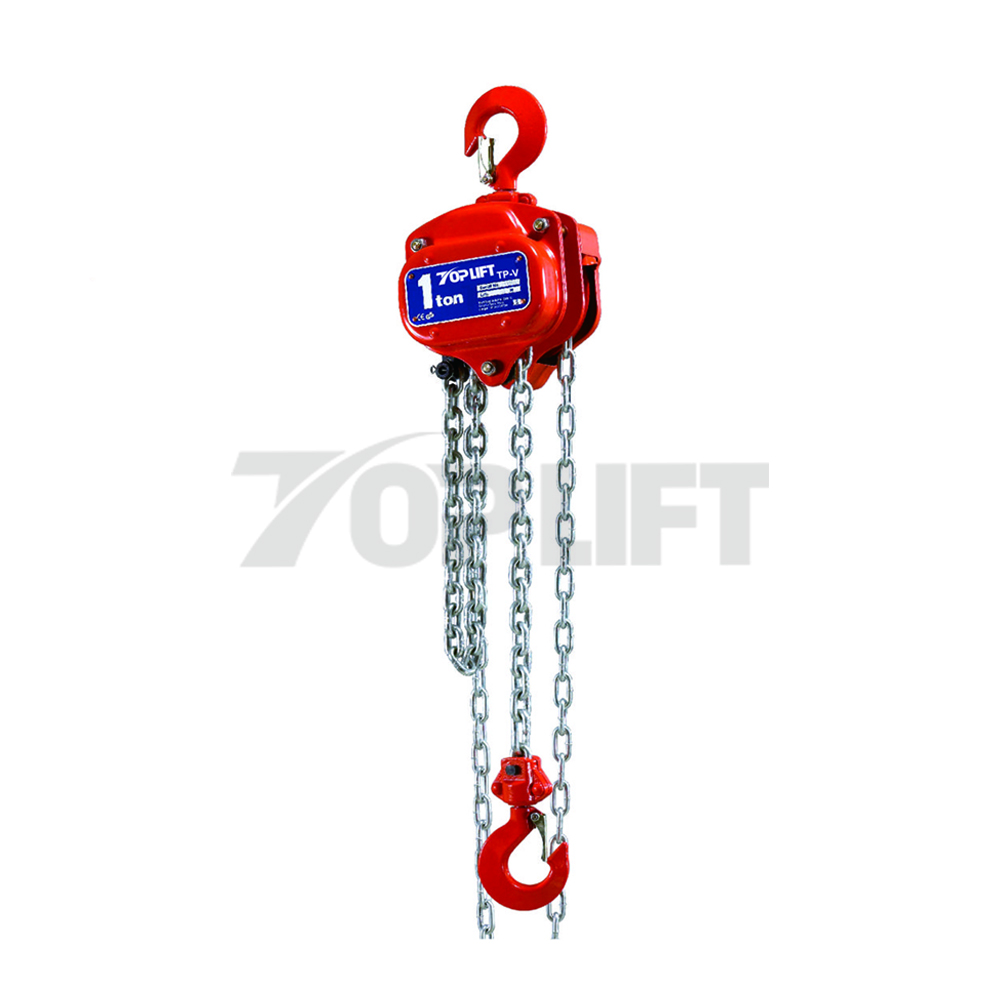

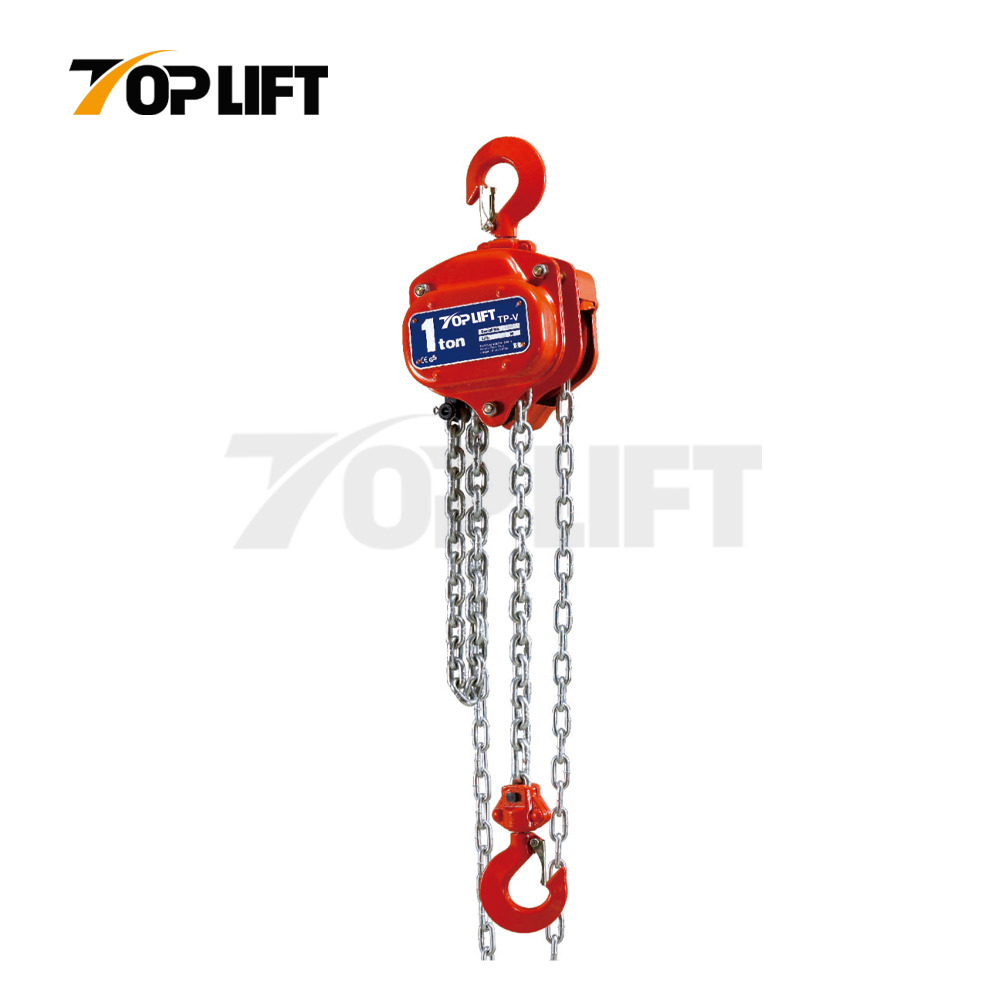

Model TP-V is a compact, lightweight and premium class hand chain block designed for heavy and increased loads, bearing safety. Chain block is widely used in factories, miners, docks, warehouses, construction sites, agriculture and other fields, to lift goods and lifting equipment, especially in conditions with no power supply or narrow , demonstrate superiority.
Features:
1. Precision gear for long working life.
2. Forged hooks with reinforced safety latch.
3. Load chain links for long life.
4. All unpainted parts with high-grade corrosion protection.
5. The capacity is from 0.5 to 30Ton.
6.The load hook will bend under overload without breaking suddenly.
7. Thickened gear enhance strength, that can effectively protect the internal structure.
8. The housing is made of steel which increase durability and lengthening tool life. It is also covered powder coating and fully encapsulated against moisture and dust.
9. Hand wheel cover with special curl edge ensures the chain working smoothly without block during hand chains inclined or horizontally pulled.
Our advantages
1. Provide OEM service.
2. We have our own brand of chain hoist: POLYTEX
3. The same quality product with the best price.
4. We are specialized in the field of lifting equipment and rigging product supply for around 10 years, with rich experience in Production.
Specification
Model | Rated load (Ton) | Standard Lift (m) | Test Load (Ton) | Efforts Required at Capacity (N) | Dia. of Load Chain (mm) | No. of Load Chains | Major Dimensions(approx)(mm) | Net Weight (kg) | Extra Weight Per Meter of Extra Lift(kg) | |||||||
A | B | C | D | S | T | U | V | |||||||||
TP-50V | 0.5 | 2.5 | 0.75 | 262 | 5 | 1 | 135 | 124 | 288 | 20 | 30 | 11.5 | 18 | 65 | 7 | 1.5 |
TP-100V | 1.0 | 2.5 | 1.5 | 304 | 6 | 1 | 160 | 137 | 334 | 25 | 37 | 18.5 | 22 | 78 | 10.5 | 1.8 |
TP-150V | 1.5 | 2.5 | 2.25 | 395 | 8 | 1 | 195 | 143 | 415 | 35 | 45 | 19 | 26 | 97 | 15.5 | 2 |
TP-200V | 2.0 | 2.5 | 3 | 330 | 6 | 2 | 160 | 137 | 459 | 35 | 48 | 23 | 29 | 103 | 17 | 2.7 |
TP-300V | 3.0 | 3 | 4.5 | 402 | 8 | 2 | 195 | 143 | 536 | 36 | 50 | 27 | 38 | 123 | 23 | 3.2 |
TP-500V | 5.0 | 3 | 7.5 | 415 | 10 | 2 | 255 | 173 | 660 | 46 | 65 | 30 | 41 | 150 | 39 | 5.3 |
TP-1000V | 10.0 | 3 | 12.5 | 428 | 10 | 4 | 395 | 173 | 738 | 55 | 80 | 40 | 61 | 215 | 69 | 9.8 |
TP-2000V | 20.0 | 3 | 25 | 428x2 | 10 | 8 | 650 | 195 | 1002 | 80 | 105 | 60 | 92 | 285 | 162 | 19.8 |
TP-3000V | 30.0 | 3 | 37.5 | 442x2 | 10 | 12 | 710 | 398 | 1050 | 82 | 105 | 65 | 98 | 285 | 237 | 23.9 |
High Standard for Details
The chain block with high quality parts, includes double brakes, precise gear, G80 chain and high quality hook.
Real Shoot of Parts
The picture shows the real shoot of parts: forged shell, high-strength gear and other precise parts.
Packaging
The chain block is packed with carton box, wooden case or customized package.
Product Test Equipment
Before the product leaves the factory, it will pass strict testing.
Factory Environment
We strictly control every step in order to bring the best products to our customers.
FAQ
1.How about after-sales service?
We supply free spare parts to replace your hoists. Besides, we can send your the video to guide your engineers.
2.How to ensure the quality?
Before packing, our chain block will be sent to inspection center for checking. And we take detailed pictures for each hoist before packing. You can offer our serial Number and then know the details.
3.How about the spare parts?
We manufactures 60% spare parts in our own factory to ensure high quality, and the other 40% spare parts from our long term supplier. Before stocking in warehouse, we have strict inspection for each part.
