TP-HS
| Quantity: | |
|---|---|
Features

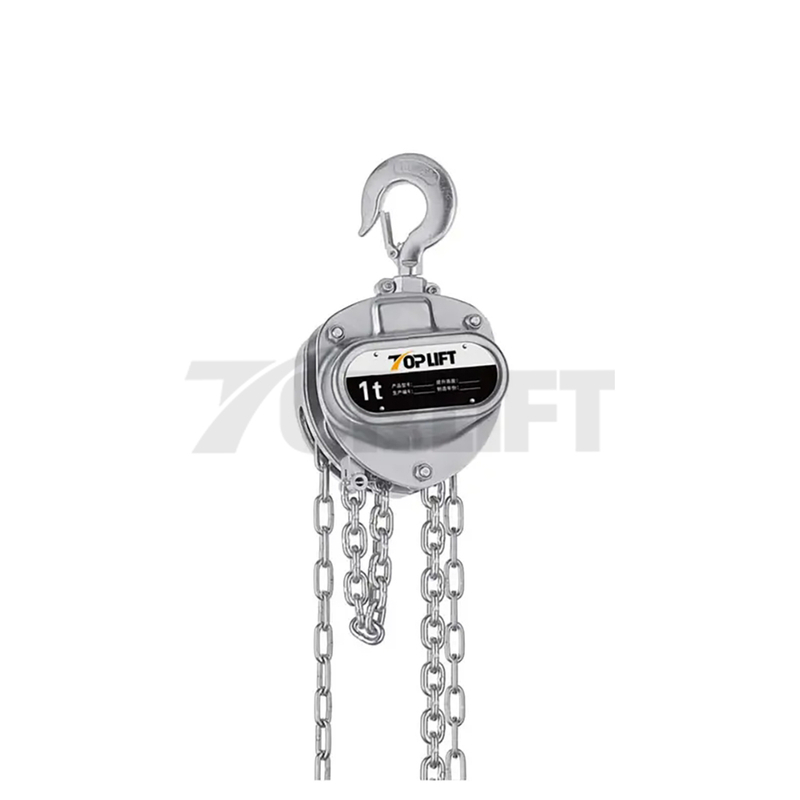

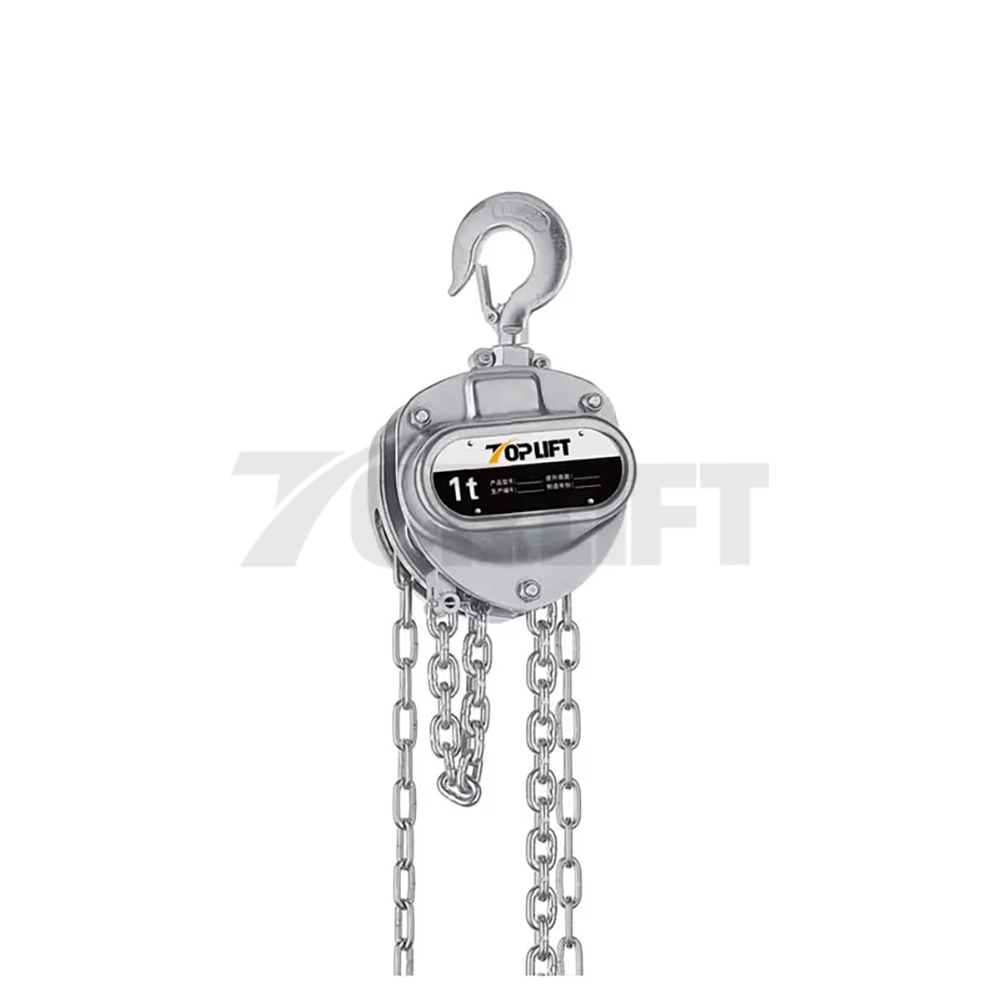

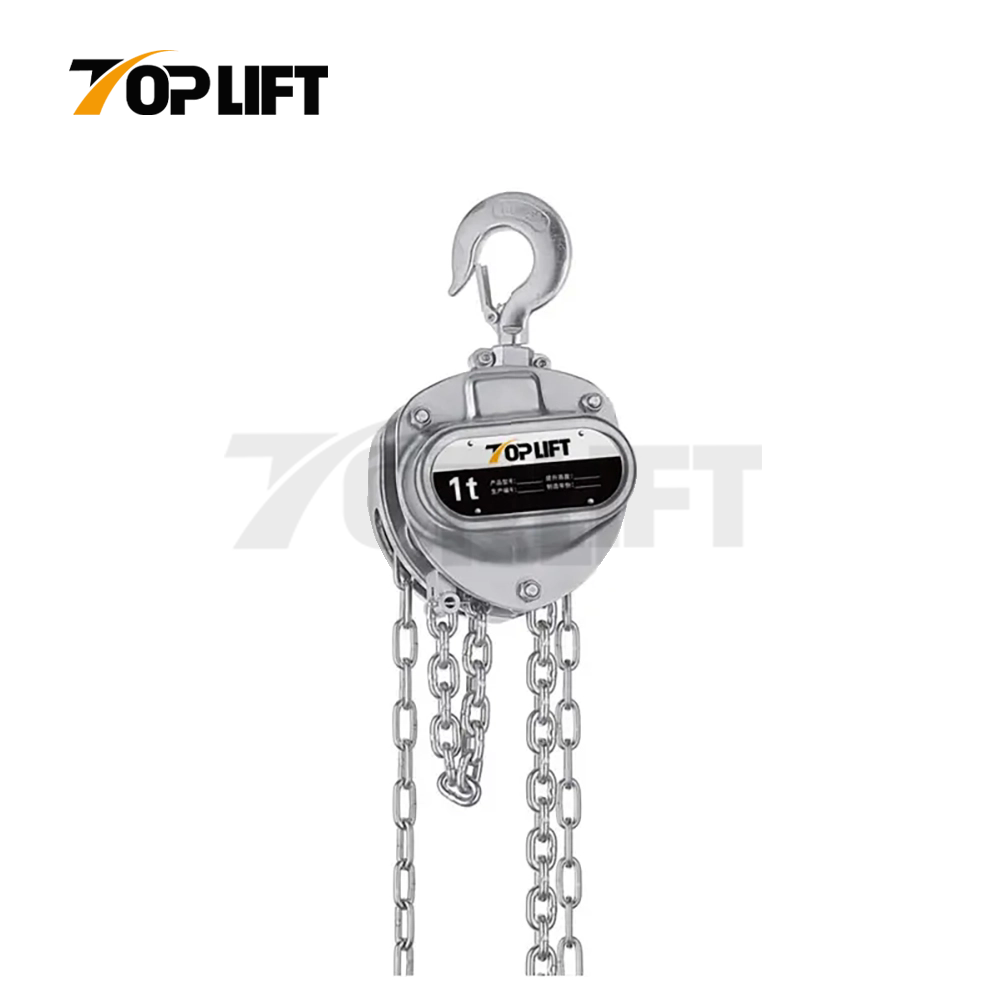

This product is suitable for chemical applications and occasions with high cleanliness requirements, such as pharmaceutical processing, food processing, sewage treatment and other industries.
The winch is made of 304 stainless steel, except the hard-hearted gear parts, bearings, handle sleeves and other parts, with a beautiful appearance.
Our Advantage
Key gear parts as a whole heat treatment, hook using forging process, durable, the whole machine has good rust and corrosion resistance effect.
The logo we can use TOP LIFT, also we accept you to customize your own logo.
| Model | HS-1 | HS-2 | HS-3 | HS-5 | |
| WLL(T) | 1 | 2 | 3 | 5 | |
| Tested Load(kN) | 12.5 | 25 | 37.5 | 62.5 | |
| Lifting Height(m) | 3 | 3 | 3 | 3 | |
| Hand Tension(N) | 320 | 335 | 385 | 410 | |
| Lifting Chain Dia.(mm) | 6 | 6 | 8 | 10 | |
| Lifting Chain Rows | 1 | 2 | 2 | 2 | |
| Size(mm) | A | 147 | 147 | 183 | 215 |
| B | 131 | 131 | 145 | 168 | |
| C | 28 | 34 | 38 | 48 | |
| D | 155 | 155 | 195 | 225 | |
| H | 310 | 445 | 488 | 620 | |
| Weight(kg) | 12 | 16 | 27 | 45 | |
| Increase Weight per Meter(kg) | 1.7 | 2.5 | 3.7 | 5.3 | |
DESCRIPTION
PRODUCT DETAILS
CONCRETE IMAGE
FACTORY
FAQ
What can we do?
1. Meet all of your lifting equipment & rigging needs.
2. Service on inspection for lifting equipment and rigging material.
How do you control your quality?
1. Selection of high-quality steel material from a famous steel group.
2. Production process standardization, process standardization, refinement.
3.100% Finished Product Testing.
4. Third-party product inspections are acceptable.
5. ISO Quality Management System Certificated Factory
6. Inspection before loading
What are your advantages compared with others?
1. Specializing in lifting equipment and rigging product supply for around 10 years, we have rich experience in Production.
2. The same quality product, the best price.
3. Timely Delivery with the support of a 3000 square meters workshop.
4. Numerous Patents in Rigging Hardware. Be Good at Custom-Made and Shaped Products.
5. Over 20 Professional Staff in Trading Team, let you enjoy worry-free and effective communication.
