TP-819
Availability: | |
---|---|
Quantity: | |

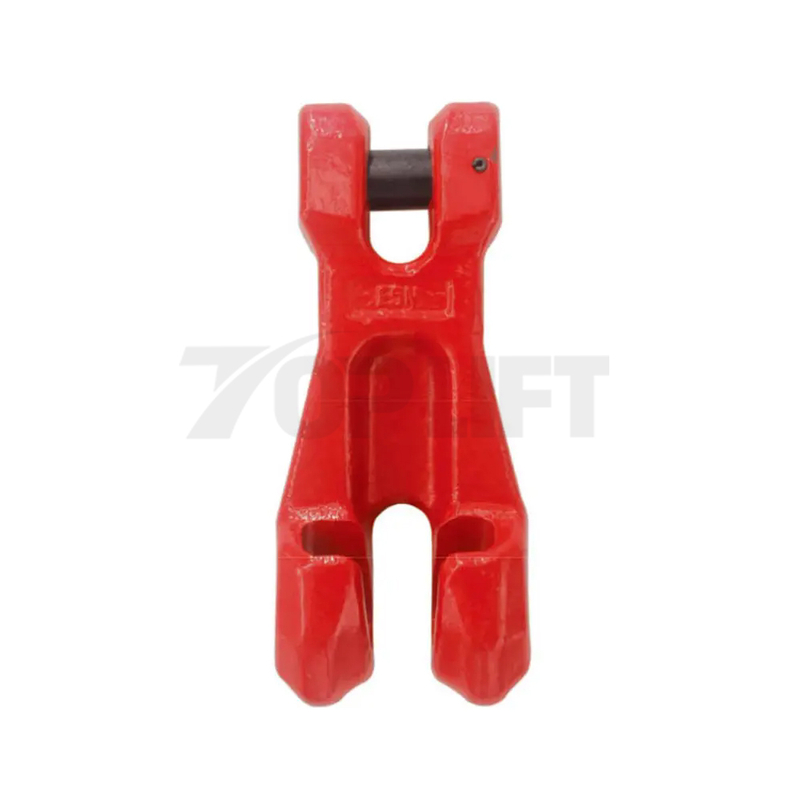

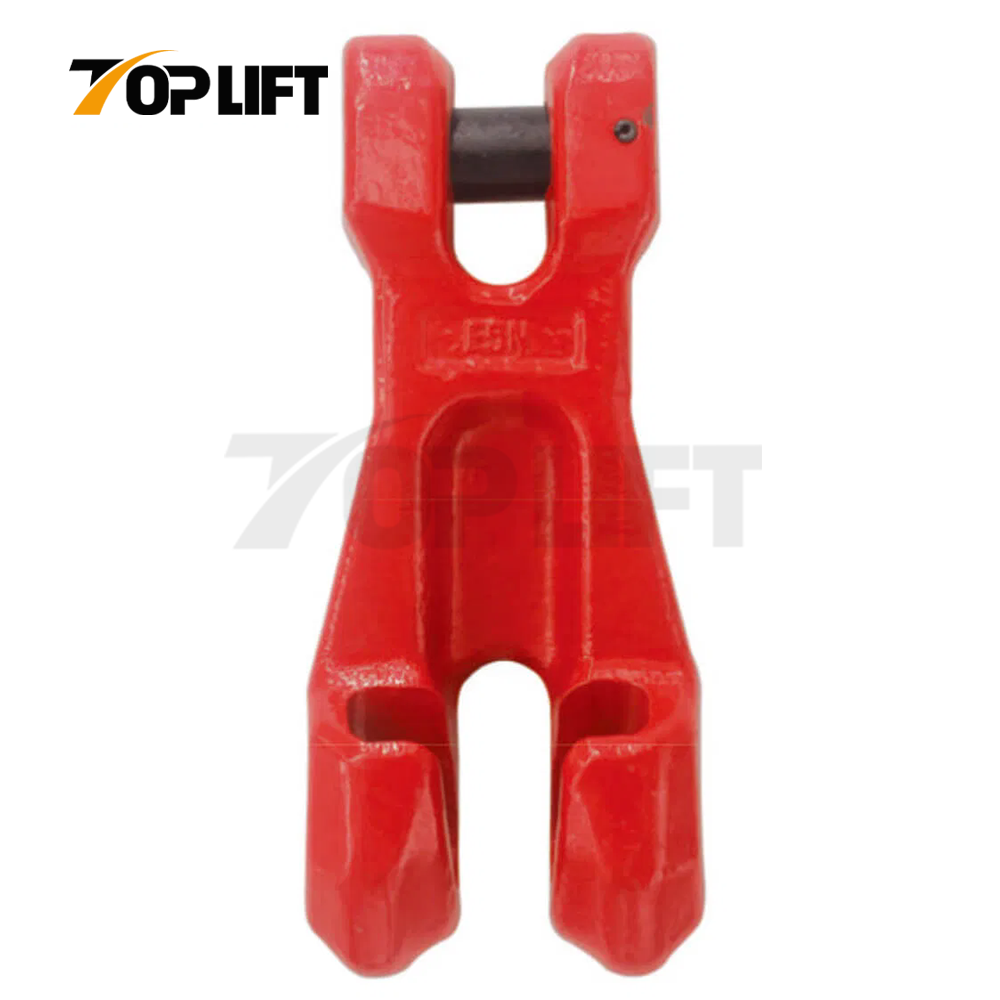

TP-819 G80 clevis clutch is used to adjust the length of G80 chain. The clevis clutch is simple in structure, easy to operate and greatly improve work efficient ratio.
Features:
1. The clutch is forged with alloy steel, durable and reliable.
2. The whole surface with powder plastic coating, more beautiful and rust-proof.
3. It passes the individually test at 2.5 times working load limit.
4. It passes fatigue test at 1.5 times working load limit for 20000 cycles.
5. 100% Magnaflux crack detection
6. Ultimate load is 4 times the working load limit.
7. All load pins are 100% individually inspected and tested to ensure the same hardness quality, durability and long service life.
8. Special specification and marks can be made according to customers.
9. The working load limit is from 1.12t to 15t.
Our advantages
1. We have our own brand TOPLIFT and also provide OEM service.
2. The same quality product with the best price.
3. We are specialized in the field of lifting equipment and rigging product supply for around 10 years, with rich experience in Production.
4. Rigging hardware with multiple patents. Good at custom and special-shaped products.
Specification
Model | W.L.L(T) | B.L(T) | E±1(mm) | A±0.5(mm) | H±1(mm) | W±1(mm) | L±2(mm) | Weight(kg/pc) |
TP817-6 | 1.12 | 4.48 | 8 | 8 | 17.7 | 21.5 | 77.3 | 0.25 |
TP817-7/8 | 2 | 8 | 10.5 | 9.5 | 18.5 | 33.5 | 89 | 0.32 |
TP817-10 | 3.15 | 12.6 | 13 | 12.5 | 29 | 46 | 126 | 0.73 |
TP817-13 | 5.3 | 21.2 | 16.5 | 15 | 42.7 | 57.5 | 163.5 | 1.6 |
TP817-16 | 8 | 32 | 19 | 18.5 | 45.4 | 74 | 183.5 | 2.8 |
TP817-20 | 12.5 | 50 | 24 | 23 | 56 | 74 | 219 | 5 |
TP817-22 | 15 | 60 | 27 | 27 | 68.5 | 90 | 254 | 6.3 |
TP817-26 | 21.2 | 84.8 | 30 | 30 | 77 | 102 | 209 | 14.5 |
Product Details
The clevis clutch covered powder plastic coating is integral forged and the load pin is 100% individually inspected and tested.
The clutch passes the tensile test, fatigue test and the 100% magnaflux crack detection.
Factory Environment
Our factory has professional equipment and we strictly control every step in order to bring the best products to our customers.
Packaging
The clutch is packed with bag or carton with pallet.
Other Products
We also have other types of hook to satisfy customers' different needs.
The pictures show other G80 hook, including G80 eye hook, clevis grab hook,rotating safety hook and eye hook.
Application
Our products are widely used in industry, transport, and construction.
FAQ
What can we do?
1. Meet all of your lifting equipment &rigging’s needs.
2. Service on inspection for lifting equipment and rigging material.
How do you control your quality?
1. Selection of high-quality steel material from famous steel group.
2. Production process standardization, process standardization, refinement.
3. 100% Finished Product Testing.
4. The third party product inspections are acceptable.
5. ISO Quality Management System Certificated Factory
6. Inspection before loading
What are your advantages compared with others?
1. Specializing in the field of lifting equipment and rigging product supply for around 10 years, having rich experience in Production.
2. The same quality product, the best price.
3. Timely Delivery with the support of 3000 square meters workshop.
4. Numerous Patents in Rigging Hardware. Be Good at Custom-Made and Shaped Products.
5. Over 20 Professional Staff in Trading Team,Let you enjoy worry-free and effective communication.
